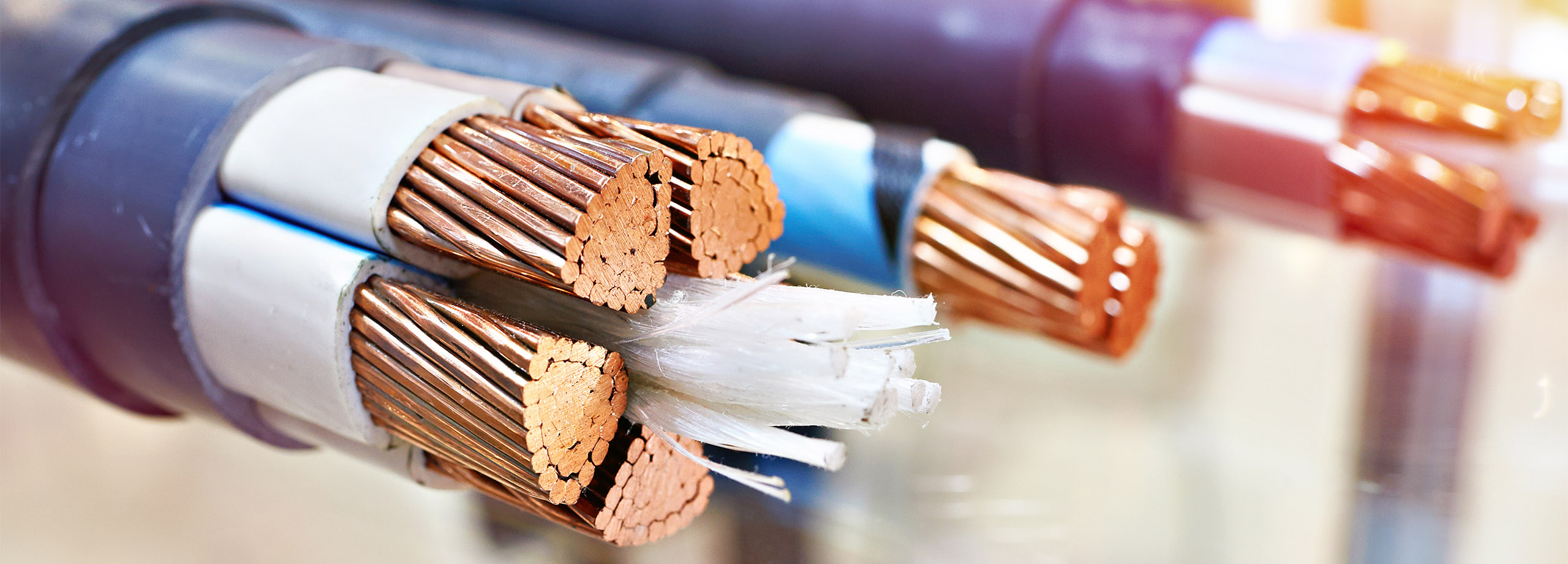

Wire and Cable Insulation

Insulation Tapes for Wire and Cable

High Performance: High Temperature, High Voltage, Fire Rated

Protect, Perform, and Preserve. At Electrolock, we are all about balance. We understand what it takes to create wire and cable solutions to withstand extreme temperatures, in demanding applications, all while maintaining the integrity and retaining key electrical properties. Our engineers work tirelessly to create custom solutions that keep all parts and the solutions they fuel working together.

We offer a wide variety of materials converted to meet your requirements for:

    • Shielding
    • Flame Barriers
    • Dielectric Barriers
    • Separators





Need to Place an Order, Request a Sample or Datasheet?

GIVE US A CALL

Call OH Office: 440.834.7500

Call SC Office: 864.486.8700

Building success from the inside out.

Explore Our Wire and Cable Solutions

Below you can find some of our standard offerings for the Wire and Cable industry.

Don’t see what you are looking for? Tell us about your application!

Solutions

  • Shielding
  • Flame Barriers
  • Dielectric Barriers
  • Separators

Materials

  • Pyrodox® Mica Tapes
  • Kapton®
  • Nomex®

Features

  • Traverse Packs
  • Flat Pads
  • 2-Ply Traverse Packs
  • Step Pack

High Voltage Insulation Materials

Custom Converted to Fit Your Needs

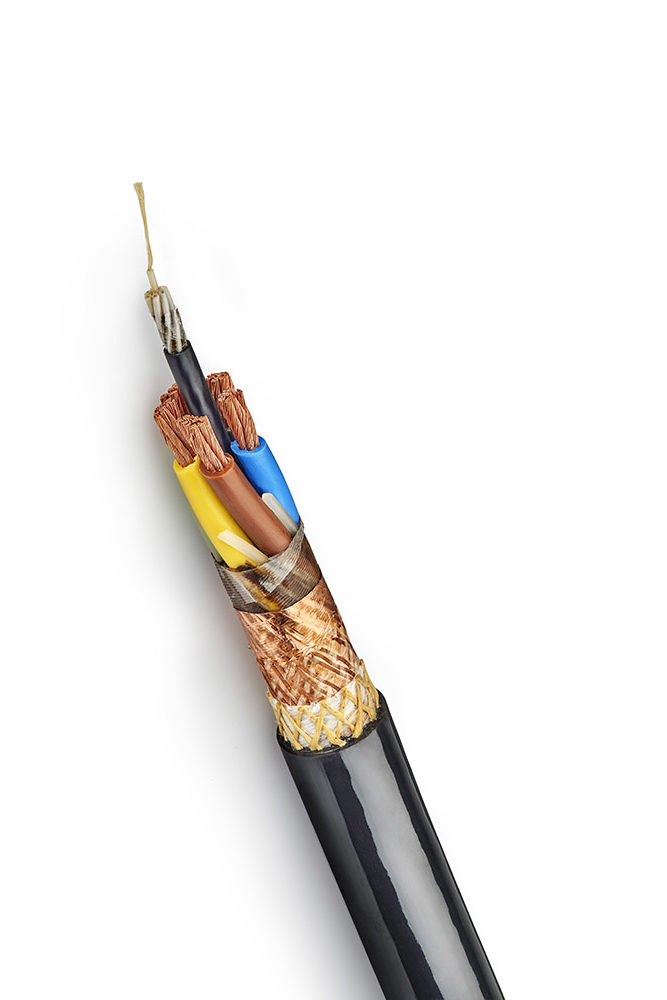

Electrolock offers a complete range of high performance wire and cable insulation products. We stock a variety of products and raw materials, and are extremely efficient in designing, manufacturing and converting wire and cable insulation solutions. Our engineers and technical sales specialists utilize their experience and our global network of raw material manufacturers to recommend solutions that fit your unique requirements.

Applications we focus on include, low smoke zero halogen fire-resistant insulation for flame retardant and fire-rated circuit integrity cable, traction motor magnet wire insulation, downhole pump motor and cable insulation, high temperature and high voltage aerospace wire and cable, and fire-rated critical emergency communication cables. We also provide a variety of shielding, binding, and cable separator materials. Materials are available as flat pads or custom traverse and step (bobbin) wound configurations, with slitting capabilities down to 1/16” width.

MORE THAN JUST DELIVERING THE FINAL PRODUCT

Balancing design and manufacturing, we offer a full range of high performance wire & cable insulation solutions.

We’re with you every step of the way.

Our engineers are able to meet your most demanding high temperate insulation requirements leveraging high temp film, flame retardant insulation, or the latest and most-trusted flame barrier components.

*Pyrodox is a registered trademark of Electrolock, Inc.

A final solution you can count on.

We incorporate a range of materials including Pyrodox®, mica flame tape, polyimide, silicone glass, and various separator products. You can acquire these in custom slit widths from ⅛’’ to more than 2.5’’, with most products available on traverse packs or flat pads.

High Temp Wire & Cable Materials

Product Name Category Sub-Category
Product Name Variety Description Application Category Sub-Category
Pyrodox GP300, GP400, GP500, GP550 Pyrodox GP is a special heat treated phlogopite mica cable tape with a halogen free silicone binder and non-alkaline fiberglass backing. The tape is engineered to withstand extreme electrical and thermal overloads as well as high moisture environments which permit its use in cables having extended fire survival time. Pyrodox is used in applications which include fire survival for control and power cables, mass transit, aircraft, oil well, thermocouple, appliance wire and shipboard cables. Wire and Cable Insulating Tapes Mica
Pyrodox GM300, GM400, GM500, GM550 Pyrodox GM is a special calcined muscovite mica cable tape with a halogen free silicone binder and non-alkaline fiberglass backing. The tape is engineered to withstand extreme electrical and thermal overloads as well as high moisture environments which permit its use in cables having extended fire survival time. Pyrodox is used in applications which include fire survival for control and power cables, mass transit, aircraft, oil well, thermocouple, appliance wire and shipboard cables. Wire and Cable Insulating Tapes Mica
Pyrodox PEP300, PEP400, PEP500, PEP550 Pyrodox PEP is a special heat treated phlogopite mica cable tape with a halogen free silicone binder and polyethylene backing. The tape is engineered to withstand extreme electrical and thermal overloads as well as high moisture environments which permit its use in cables having extended fire survival time. The film backing allows for ease of insulation stripping on automated cut and strip machines. Pyrodox is used in applications which include fire survival for control and power cables, mass transit, aircraft, oil well, thermocouple, appliance wire and shipboard cables. Wire and Cable Insulating Tapes Mica
Pyrodox SG300, SG400, SG500, SG550 Pyrodox SG is a special heat treated synthetic mica cable tape with a halogen free silicone binder and non-alkaline fiberglass backing. The tape is engineered to withstand extreme electrical and thermal overloads as well as high moisture environments which permit its use in cables having extended fire survival time. The film backing allows for ease of insulation stripping on automated cut and strip machines. Pyrodox is used in applications which include fire survival for control and power cables, mass transit, aircraft, oil well, thermocouple, appliance wire and shipboard cables. Wire and Cable Insulating Tapes Mica
Pyrodox SEP300, SEP400, SEP500, SEP550 Pyrodox PEP is a special heat treated synthetic mica cable tape with a halogen free silicone binder and polyethylene backing. The tape is engineered to withstand extreme electrical and thermal overloads as well as high moisture environments which permit its use in cables having extended fire survival time. The film backing allows for ease of insulation stripping on automated cut and strip machines. Pyrodox is used in applications which include fire survival for control and power cables, mass transit, aircraft, oil well, thermocouple, appliance wire and shipboard cables. Wire and Cable Insulating Tapes Mica
Pyrodox PET300, PET400, PET500, PET550 Pyrodox PET is a special heat treated phlogopite mica cable tape with a halogen free silicone binder and polyester backing. The tape is engineered to withstand extreme electrical and thermal overloads as well as high moisture environments which permit its use in cables having extended fire survival time. The film backing allows for ease of insulation stripping on automated cut and strip machines. Pyrodox is used in applications which include fire survival for control and power cables, mass transit, aircraft, oil well, thermocouple, appliance wire and shipboard cables. Wire and Cable Insulating Tapes Mica
Nomex® 410 Wire and Cable Insulating Tapes Mica
Nomex® 411 Wire and Cable Insulating Tapes Mica
Nomex® 418 Wire and Cable Insulating Tapes Mica
PTFE Wire and Cable Insulating Tapes Teflon
FEP Wire and Cable Insulating Tapes Teflon
PFA Wire and Cable Insulating Tapes Teflon
Sintered Wire and Cable Insulating Tapes Teflon
UnSintered Wire and Cable Insulating Tapes Teflon
Tensilized Wire and Cable Insulating Tapes Teflon
Apical Wire and Cable Insulating Tapes Polyimide
Kapton Wire and Cable Insulating Tapes Polyimide

A Final Solution You Can Count On

Every manufacturing system consists of manufacturing methods, materials, operators, and equipment. How these system components work together can make a huge difference in the quality of the final product your company produces.

Electrolock can help you identify the insulation materials that will work best in your process. We can also help improve your methods in order to produce a premium high voltage insulation system.

Have questions or don’t see quite what you are looking for? Call us to help you design the best insulation system for your application.
